MILLING CHUCKS |
|
 |
 |

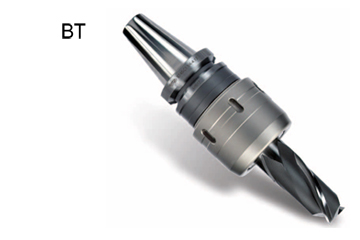

| STANDARD MILLING CHUCK |

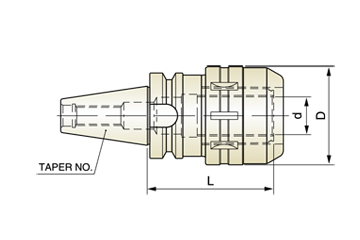

| EDP No. | Type | Taper No. | d | L | D |
| LH010 | BT 40-C3/4-3.56 | 40 | 0.750 | 3.56 | 2.13 |
| LH014 | BT 40-C1" -4.13 | 40 | 1.000 | 4.13 | 2.50 |
| LH017 | BT 40-C1*1/4-4.13 | 40 | 1.250 | 4.13 | 2.81 |
| LI010 | BT 50-C3/4-4.13 | 50 | 0.750 | 4.13 | 2.13 |
| LI014 | BT 50-C1" -4.13 | 50 | 1.000 | 4.13 | 2.50 |
| LI017 | BT 50-C1*1/4-4.13 | 50 | 1.250 | 4.13 | 2.81 |
