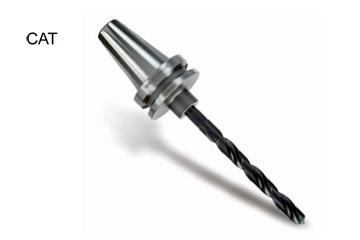

MORSE TAPER ADAPTERS |
|
 |
 |
| MORSE TAPER ADAPTERS |

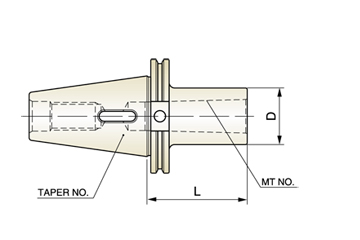

| EDP No. | Type | Taper No. | MT No. | L | D |
| CK037 | CAT 40-MTA1-1.75 | 40 | #1 | 1.75 | 1.00 |
| CK038 | CAT 40-MTA2-2.00 | 40 | #2 | 2.00 | 1.26 |
| CK039 | CAT 40-MTA3-2.75 | 40 | #3 | 2.75 | 1.58 |
| CK040 | CAT 40-MTA4-3.63 | 40 | #4 | 3.63 | 1.97 |
| CL038 | CAT 50-MTA2-1.38 | 50 | #2 | 1.38 | 1.26 |
| CL039 | CAT 50-MTA3-1.88 | 50 | #3 | 1.88 | 1.58 |
| CL040 | CAT 50-MTA4-2.75 | 50 | #4 | 2.75 | 1.97 |
| CL041 | CAT 50-MTA5-4.06 | 50 | #5 | 4.06 | 2.55 |
