MORSE TAPER ADAPTERS |
|
 |
 |

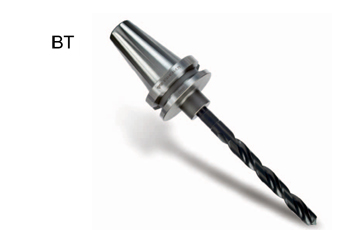

| MORSE TAPER ADAPTER A-TYPE |

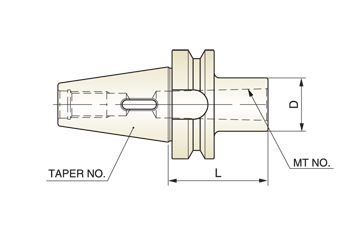

| EDP No. | Type | Taper No. | MT No. | L | D |
| CH037 | BT 40-MTA1-1.75 | 40 | #1 | 1.75 | 1.00 |
| CH038 | BT 40-MTA2-2.36 | 40 | #2 | 2.36 | 1.26 |
| CH039 | BT 40-MTA3-2.95 | 40 | #3 | 2.95 | 1.58 |
| CH040 | BT 40-MTA4-3.74 | 40 | #4 | 3.74 | 1.97 |
| CI 038 | BT 50-MTA2-2.36 | 50 | #2 | 2.36 | 1.26 |
| CI 039 | BT 50-MTA3-2.95 | 50 | #3 | 2.95 | 1.58 |
| CI 040 | BT 50-MTA4-3.74 | 50 | #4 | 3.74 | 1.97 |
| CI 041 | BT 50-MTA5-4.13 | 50 | #5 | 4.13 | 2.55 |
