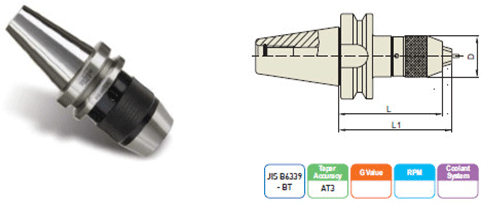

NC DRILL CHUCK (BT) |
 |
| NC DRILL CHUCK (BT) |
| EDP No. | TAPER No. | MODEL No. | CLAMPING RANGE | D | L(MIN) | L1(MAX) |
| RG100 | 30 | BT30-NPU 8-70 | 0.3~8 | 36.5 | 70 | 75.7 |
| RG102 | BT30-NPU 13-100 | 1~13 | 50.4 | 100 | 110 | |
| RH100 | 40 | BT40-NPU 8-70 | 0.3~8 | 36.5 | 70 | 75.7 |
| RH102 | BT40-NPU 8-110 | 0.3~8 | 36.5 | 110 | 115.7 | |
| RH104 | BT40-NPU 8-150 | 0.3~8 | 36.5 | 150 | 155.7 | |
| RH106 | BT40-NPU 13-90 | 1~13 | 50.4 | 90 | 95.7 | |
| RH108 | BT40-NPU 13-130 | 1~13 | 50.4 | 130 | 140 | |
| RH110 | BT40-NPU 13-150 | 1~13 | 50.4 | 150 | 160 |
