NC DRILL CHUCK (CAT) |
 |
| NC DRILL CHUCK (CAT) |

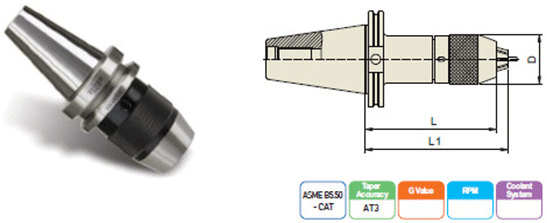

| EDP No. | TAPER No. | MODEL No. | CLAMPING RANGE | D | L | L1 |
| RK020 | 40 | CAT40 - NPU8-2.95 | 0.012 - 0.315 | 1.437 | 2.950 | 2.980 |
| RK022 | CAT40 - NPU8-4.33 | 0.012 - 0.315 | 1.437 | 4.330 | 4.550 | |
| RK024 | CAT40 - NPU8-5.90 | 0.012 - 0.315 | 1.437 | 5.900 | 5.900 | |
| RK026 | CAT40 - NPU13-3.54 | 0.039 - 0.512 | 1.984 | 3.540 | 3.760 | |
| RK028 | CAT40 - NPU13-5.12 | 0.039 - 0.512 | 1.984 | 5.120 | 5.340 | |
| RK030 | CAT40 - NPU13-5.91 | 0.039 - 0.512 | 1.984 | 5.910 | 5.900 | |
| RL020 | 50 | CAT50 - NPU8-3.54 | 0.012 - 0.315 | 1.437 | 3.540 | 3.760 |
| RL022 | CAT50 - NPU8-4.33 | 0.012 - 0.315 | 1.437 | 4.330 | 4.550 | |
| RL024 | CAT50 - NPU8-6.69 | 0.012 - 0.315 | 1.437 | 6.690 | 6.920 | |
| RL026 | CAT50 - NPU13-3.94 | 0.039 - 0.512 | 1.984 | 3.940 | 4.160 | |
| RL028 | CAT50 - NPU13-5.12 | 0.039 - 0.512 | 1.984 | 5.120 | 5.340 | |
| RL030 | CAT50 - NPU13-5.91 | 0.039 - 0.512 | 1.984 | 5.910 | 5.900 | |
| RL032 | CAT50 - NPU13-7.48 | 0.039 - 0.512 | 1.984 | 7.480 | 7.700 |
