NC ER COLLET CHUCK |
 |
| NC ER COLLET CHUCK |

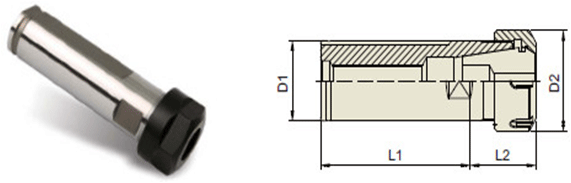

| TAPER NO. | MODEL No. | D1 | D2 | L1 | L2 | EDP NO. |
| NC | NC1 - ER11 | 1.000 | 0.748 | 2.559 | 1.260 | BN110 |
| NC1 - ER16 | 1.000 | 1.102 | 2.559 | 1.260 | BN111 | |
| NC1 - ER20 | 1.000 | 1.339 | 2.559 | 1.260 | BN112 | |
| NC1 - ER25 | 1.000 | 1.654 | 2.559 | 1.260 | BN113 | |
| NC1-1/4 - ER20 | 1.250 | 1.339 | 2.756 | 1.260 | BN114 | |
| NC1-1/4 - ER25 | 1.250 | 1.654 | 2.756 | 1.496 | BN115 | |
| NC1-1/4 - ER32 | 1.250 | 1.969 | 2.756 | 1.496 | BN116 | |
| NC1-1/4 - ER40 | 1.250 | 2.480 | 2.953 | 1.496 | BN117 | |
| NC1-1/2 - ER25 | 1.500 | 1.654 | 2.953 | 2.087 | BN118 | |
| NC1-1/2 - ER32 | 1.500 | 1.969 | 2.953 | 2.087 | BN119 | |
| NC1-1/2 - ER40 | 1.500 | 2.480 | 2.953 | 2.087 | BN120 |
