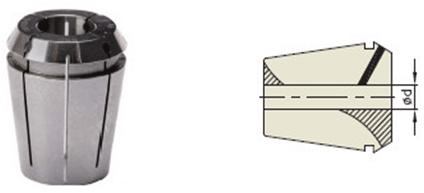

SEALED ER COLLET (INCH TYPE) |
 |
| SEALED ER COLLET (INCH TYPE) |
| EDP No. | CLAMPING CAPACITY |
| TYPE ER11S | |
| 110108S | 1/8 |
| 110532S | 5/32 |
| 110316S | 3/16 |
| 110732S | 7/32 |
| 110104S | 1/4 |
| ER11S05S | STANDARD SET |
| Φ1/8" to 1/4" | |
| 5PCS | |
| EDP No. | CLAMPING CAPACITY |
| TYPE ER16S | |
| 160108S | 1/8 |
| 160532S | 5/32 |
| 160316S | 3/16 |
| 160732S | 7/32 |
| 160104S | 1/4 |
| 160932S | 9/32 |
| 160516S | 5/16 |
| 161132S | 11/32 |
| 160308S | 3/8 |
| 161332S | 13/32 |
| ER16S10S | STANDARD SET |
| Φ1/8" to 13/32" | |
| 10PCS | |
| EDP No. | CLAMPING CAPACITY |
| TYPE ER20S | |
| 200108S | 1/8 |
| 200532S | 5/32 |
| 200316S | 3/16 |
| 200732S | 7/32 |
| 200104S | 1/4 |
| 200932S | 9/32 |
| 200516S | 5/16 |
| 201132S | 11/32 |
| 200308S | 3/8 |
| 201332S | 13/32 |
| 200716S | 7/16 |
| 201532S | 15/32 |
| 200102S | 1/2 |
| ER20S13S | STANDARD SET |
| Φ1/8" to 1/2" | |
| 13PCS | |
| EDP No. | CLAMPING CAPACITY |
| TYPE ER25S | |
| 250108S | 1/8 |
| 250532S | 5/32 |
| 250316S | 3/16 |
| 250732S | 7/32 |
| 250104S | 1/4 |
| 250932S | 9/32 |
| 250516S | 5/16 |
| 251132S | 11/32 |
| 250308S | 3/8 |
| 251332S | 13/32 |
| 250716S | 7/16 |
| 251532S | 15/32 |
| 250102S | 1/2 |
| 251732S | 17/32 |
| 250916S | 9/16 |
| 251932S | 19/32 |
| 250508S | 5/8 |
| ER25S17S | STANDARD SET |
| Φ1/8" to 5/8" | |
| 17PCS | |
| EDP No. | CLAMPING CAPACITY |
| TYPE ER32S | |
| 320108S | 1/8 |
| 320532S | 5/32 |
| 320316S | 3/16 |
| 320732S | 7/32 |
| 320104S | 1/4 |
| 320932S | 9/32 |
| 320516S | 5/16 |
| 321132S | 11/32 |
| 320308S | 3/8 |
| 321332S | 13/32 |
| 320716S | 7/16 |
| 321532S | 15/32 |
| 320102S | 1/2 |
| 321732S | 17/32 |
| 320916S | 9/16 |
| 321932S | 19/32 |
| 320508S | 5/8 |
| 322132S | 21/32 |
| 321116S | 11/16 |
| 322332S | 23/32 |
| 320304S | 3/4 |
| ER32S21S | STANDARD SET |
| Φ1/8" to 3/4" | |
| 21PCS | |
| EDP No. | CLAMPING CAPACITY |
| TYPE ER40S | |
| 400108S | 1/8 |
| 400532S | 5/32 |
| 400316S | 3/16 |
| 400732S | 7/32 |
| 400104S | 1/4 |
| 400932S | 9/32 |
| 400516S | 5/16 |
| 401132S | 11/32 |
| 400308S | 3/8 |
| 401332S | 13/32 |
| 400716S | 7/16 |
| 401532S | 15/32 |
| 400102S | 1/2 |
| 401732S | 17/32 |
| 400916S | 9/16 |
| 401932S | 19/32 |
| 400508S | 5/8 |
| 402132S | 21/32 |
| 401116S | 11/16 |
| 402332S | 23/32 |
| 400304S | 3/4 |
| 402532S | 25/32 |
| 401316S | 13/16 |
| 402732S | 27/32 |
| 400708S | 7/8 |
| 402932S | 29/32 |
| 401516S | 15/16 |
| 403132S | 31/32 |
| 401000S | 1 |
| ER40S29S | STANDARD SET |
| Φ1/8" to 1" | |
| 29PCS | |
