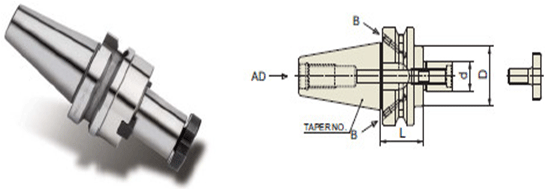

SHELL MILL ARBOR (BT) |
 |
| SHELL MILL ARBOR (BT) |
| TAPER No. | MODEL No. | d | L | D | EDP No. |
| 40 | BT40AD/B - SMA 1/2 - 1.75 | 0.500 | 1.75 | 1.44 | EH006B |
| BT40AD/B - SMA 3/4 - 1.77 | 0.750 | 1.77 | 1.69 | EH010B | |
| BT40AD/B - SMA 1 - 1.77 | 1.000 | 1.77 | 2.19 | EH014B | |
| BT40AD/B - SMA 1 1/4 - 1.81 | 1.250 | 1.81 | 2.75 | EH017B | |
| BT40AD/B - SMA 1 1/2 - 2.36 | 1.500 | 2.36 | 3.81 | EH021B | |
| 40 | BT40AD/B - SMA 1/2 - 3.50 | 0.500 | 3.50 | 1.44 | EH306B |
| BT40AD/B - SMA 3/4 - 4.13 | 0.750 | 4.13 | 1.69 | EH310B | |
| BT40AD/B - SMA 1 - 4.13 | 1.000 | 4.13 | 2.19 | EH314B | |
| BT40AD/B - SMA 1 1/4 - 4.13 | 1.250 | 4.13 | 2.75 | EH317B | |
| BT40AD/B - SMA 1 1/2 - 4.72 | 1.500 | 4.72 | 3.81 | EH321B |
