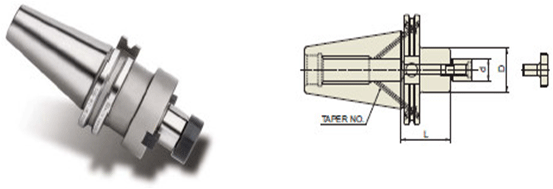

SHELL MILL ARBOR (CAT) |
 |
| SHELL MILL ARBOR (CAT) |
| TAPER No. | MODEL No. | d | L | D | EDP No. |
| 40 | CAT40AD/B - SMA 1/2 - 1.50 | 0.500 | 1.50 | 1.44 | EK006B |
| CAT40AD/B - SMA 3/4 - 1.50 | 0.750 | 1.50 | 1.69 | EK010B | |
| CAT40AD/B - SMA 1 - 2.00 | 1.000 | 2.00 | 2.19 | EK014B | |
| CAT40AD/B - SMA 1 1/4 - 2.00 | 1.250 | 2.00 | 2.75 | EK017B | |
| CAT40AD/B - SMA 1 1/2 - 3.00 | 1.500 | 3.00 | 3.81 | EK021B | |
| 50 | CAT50AD/B - SMA 3/4 - 1.50 | 0.750 | 1.50 | 1.69 | EL010B |
| CAT50AD/B - SMA 1 - 2.00 | 1.000 | 2.00 | 2.19 | EL014B | |
| CAT50AD/B - SMA 1 1/4 - 2.00 | 1.250 | 2.00 | 2.75 | EL017B | |
| CAT50AD/B - SMA 1 1/2 - 2.50 | 1.500 | 2.50 | 3.81 | EL021B | |
| CAT50AD/B - SMA 2 - 3.00 | 2.000 | 3.00 | 4.88 | EL029B | |
| 40 | CAT40AD/B - SMA 1/2 - 3.50 | 0.500 | 3.50 | 1.44 | EK306B |
| CAT40AD/B - SMA 3/4 - 3.50 | 0.750 | 3.50 | 1.69 | EK310B | |
| CAT40AD/B - SMA 1 - 4.00 | 1.000 | 4.00 | 2.19 | EK314B | |
| CAT40AD/B - SMA 1 1/4 - 4.00 | 1.250 | 4.00 | 2.75 | EK317B | |
| CAT40AD/B - SMA 1 1/2 - 4.00 | 1.500 | 4.00 | 3.81 | EK321B | |
| 50 | CAT50AD/B - SMA 3/4 - 3.50 | 0.750 | 3.50 | 1.69 | EL310B |
| CAT50AD/B - SMA 1 - 4.00 | 1.000 | 4.00 | 2.19 | EL314B | |
| CAT50AD/B - SMA 1 1/4 - 4.00 | 1.250 | 4.00 | 2.75 | EL317B | |
| CAT50AD/B - SMA 1 1/2 - 4.00 | 1.500 | 4.00 | 3.81 | EL321B | |
| CAT50AD/B - SMA 2 - 4.00 | 2.000 | 4.00 | 4.88 | EL329B |
