SHRINK FIT EXTENSION ST (INCH)

SHRINK FIT EXTENSION ST (INCH)

SHRINK FIT EXTENSION ST (INCH)

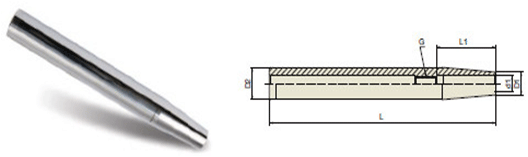

EDP TAPER No. MODEL No. d1 D1 D2 L L1 G
VS010 ST1/2 ST1/2 - SFH1/8-6.30 0.125 0.394 0.500 6.299 0.354 -
VS011 ST1/2 ST1/2 - SFH3/16-6.30 0.188 0.394 0.500 6.299 0.472 -
VS012 ST1/2 ST1/2 - SFH1/4-6.30 0.250 0.394 0.500 6.299 1.417 M5x0.8mm
VS020 ST5/8 ST5/8 - SFH1/8-6.30 0.125 0.394 0.625 6.299 0.354 -
VS021 ST5/8 ST5/8 - SFH3/16-6.30 0.188 0.394 0.625 6.299 0.472 -
VS022 ST5/8 ST5/8 - SFH1/4-6.30 0.250 0.394 0.625 6.299 1.417 M5x0.8mm
VS023 ST5/8 ST5/8 - SFH5/16-6.30 0.313 0.472 0.625 6.299 1.535 M6x0.8mm
VS030 ST3/4 ST3/4 - SFH1/8-6.30 0.125 0.394 0.750 6.299 0.354 -
VS031 ST3/4 ST3/4 - SFH3/16-6.30 0.188 0.394 0.750 6.299 0.472 -
VS032 ST3/4 ST3/4 - SFH1/4-6.30 0.250 0.551 0.750 6.299 1.417 M5x0.8mm
VS033 ST3/4 ST3/4 - SFH5/16-6.30 0.313 0.551 0.750 6.299 1.535 M6x1.0mm
VS034 ST3/4 ST3/4 - SFH3/8-6.30 0.375 0.551 0.750 6.299 1.654 M8x1.0mm
VS035 ST3/4 ST3/4 - SFH1/2-6.30 0.500 0.630 0.750 6.299 1.850 M10x1.0mm
VS040 ST1 ST1 - SFH1/8-6.30 0.125 0.394 1.000 6.299 0.354 -
VS041 ST1 ST1 - SFH3/16-6.30 0.188 0.394 1.000 6.299 0.472 -
VS042 ST1 ST1 - SFH1/4-6.30 0.250 0.551 1.000 6.299 1.417 M6x1.0mm
VS043 ST1 ST1 - SFH5/16-6.30 0.313 0.551 1.000 6.299 1.535 M6x1.0mm
VS044 ST1 ST1 - SFH3/8-6.30 0.375 0.787 1.000 6.299 1.654 M8x1.0mm
VS045 ST1 ST1 - SFH1/2-6.30 0.500 0.787 1.000 6.299 1.850 M10x1.0mm
VS046 ST1 ST1 - SFH5/8-6.30 0.625 0.866 1.000 6.299 1.969 M12x1.0mm
VS050 ST1-1/4 ST1-1/4 - SFH1/8-6.30 0.125 0.394 1.250 6.299 0.354 -
VS051 ST1-1/4 ST1-1/4 - SFH3/16-6.30 0.188 0.394 1.250 6.299 0.472 -
VS052 ST1-1/4 ST1-1/4 - SFH1/4-6.30 0.250 0.551 1.250 6.299 1.417 M5x0.8mm
VS053 ST1-1/4 ST1-1/4 - SFH5/16-6.30 0.313 0.551 1.250 6.299 1.535 M6x1.0mm
VS054 ST1-1/4 ST1-1/4 - SFH3/8-6.30 0.375 0.945 1.250 6.299 1.654 M8x1.0mm
VS055 ST1-1/4 ST1-1/4 - SFH1/2-6.30 0.500 0.945 1.250 6.299 1.850 M10x1.0mm
VS056 ST1-1/4 ST1-1/4 - SFH5/8-6.30 0.625 1.063 1.250 6.299 1.969 M12x1.0mm
VS057 ST1-1/4 ST1-1/4 - SFH3/4-6.30 0.750 1.063 1.250 6.299 2.047 M16x1.0mm
