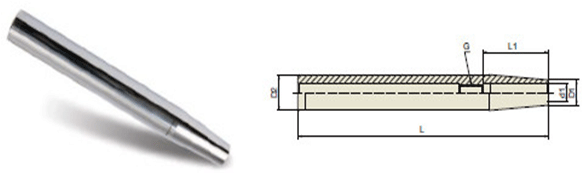

SHRINK FIT EXTENSION ST (METRIC size) |
 |
| SHRINK FIT EXTENSION ST (METRIC size) |
| EDP | TAPER No. | MODEL No. | d1 | D1 | D2 | L | L1 | G |
| VS010M | 12 | ST12-SFH3-120 | 3 | 8 | 12 | 120 | 10 | - |
| VS011M | 12 | ST12-SFH4-120 | 4 | 8 | 12 | 120 | 12 | - |
| VS012M | 12 | ST12-SFH5-120 | 5 | 10 | 12 | 120 | 15 | - |
| VS013M | 12 | ST12-SFH6-120 | 6 | 10 | 12 | 120 | 36 | M5x0.8mm |
| VS020M | 16 | ST16-SFH3-120 | 3 | 10 | 16 | 120 | 10 | - |
| VS021M | 16 | ST16-SFH4-120 | 4 | 10 | 16 | 120 | 12 | - |
| VS022M | 16 | ST16-SFH5-120 | 5 | 10 | 16 | 120 | 15 | - |
| VS023M | 16 | ST16-SFH6-120 | 6 | 10 | 16 | 120 | 36 | M5x0.8mm |
| VS024M | 16 | ST16-SFH8-120 | 8 | 12 | 16 | 120 | 36 | M6x1.0mm |
| VS030M | 20 | ST20-SFH3-120 | 3 | 10 | 20 | 120 | 10 | - |
| VS031M | 20 | ST20-SFH4-120 | 4 | 10 | 20 | 120 | 12 | - |
| VS032M | 20 | ST20-SFH5-120 | 5 | 10 | 20 | 120 | 15 | - |
| VS033M | 20 | ST20-SFH6-120 | 6 | 10 | 20 | 120 | 36 | M5x0.8mm |
| VS034M | 20 | ST20-SFH8-120 | 8 | 12 | 20 | 120 | 36 | M6x1.0mm |
| VS035M | 20 | ST20-SFH10-120 | 10 | 14 | 20 | 120 | 43 | M8x1.0mm |
| VS036M | 20 | ST20-SFH12-120 | 12 | 16 | 20 | 120 | 48 | M10x1.0mm |
