SHRINK FIT EXTENSION ST EXTENED (METRIC size) |
 |
| SHRINK FIT EXTENSION ST EXTENED (METRIC size) |

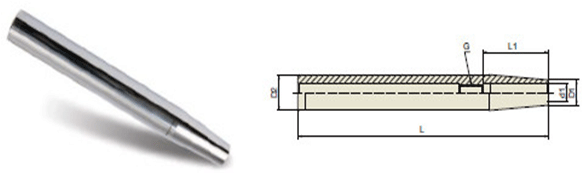

| EDP | TAPER No. | MODEL No. | d1 | D1 | D2 | L | L1 | G |
| VS110M | 12 | ST12-SFH3-160 | 3 | 8 | 12 | 160 | 10 | - |
| VS111M | 12 | ST12-SFH4-160 | 4 | 8 | 12 | 160 | 12 | - |
| VS112M | 12 | ST12-SFH5-160 | 5 | 10 | 12 | 160 | 15 | - |
| VS113M | 12 | ST12-SFH6-160 | 6 | 10 | 12 | 160 | 36 | M5x0.8mm |
| VS210M | 16 | ST16-SFH3-160 | 3 | 10 | 16 | 160 | 10 | - |
| VS211M | 16 | ST16-SFH4-160 | 4 | 10 | 16 | 160 | 12 | - |
| VS212M | 16 | ST16-SFH5-160 | 5 | 10 | 16 | 160 | 15 | - |
| VS213M | 16 | ST16-SFH6-160 | 6 | 10 | 16 | 160 | 36 | M5x0.8mm |
| VS214M | 16 | ST16-SFH8-160 | 8 | 12 | 16 | 160 | 36 | M6x1.0mm |
| VS310M | 20 | ST20-SFH3-160 | 3 | 10 | 20 | 160 | 10 | - |
| VS311M | 20 | ST20-SFH4-160 | 4 | 10 | 20 | 160 | 12 | - |
| VS312M | 20 | ST20-SFH5-160 | 5 | 10 | 20 | 160 | 15 | - |
| VS313M | 20 | ST20-SFH6-160 | 6 | 10 | 20 | 160 | 36 | M5x0.8mm |
| VS314M | 20 | ST20-SFH8-160 | 8 | 12 | 20 | 160 | 36 | M6x1.0mm |
| VS315M | 20 | ST20-SFH10-160 | 10 | 14 | 20 | 160 | 43 | M8x1.0mm |
| VS316M | 20 | ST20-SFH12-160 | 12 | 16 | 20 | 160 | 48 | M10x1.0mm |
| VS410M | 25 | ST25-SFH3-160 | 3 | 10 | 25 | 160 | 10 | - |
| VS411M | 25 | ST25-SFH4-160 | 4 | 10 | 25 | 160 | 12 | - |
| VS412M | 25 | ST25-SFH5-160 | 5 | 15 | 25 | 160 | 15 | - |
| VS413M | 25 | ST25-SFH6-160 | 6 | 20 | 25 | 160 | 36 | M5x0.8mm |
| VS414M | 25 | ST25-SFH8-160 | 8 | 20 | 25 | 160 | 36 | M6x1.0mm |
| VS415M | 25 | ST25-SFH10-160 | 10 | 20 | 25 | 160 | 43 | M8x1.0mm |
| VS416M | 25 | ST25-SFH12-160 | 12 | 20 | 25 | 160 | 48 | M10x1.0mm |
| VS417M | 25 | ST25-SFH14-160 | 14 | 20 | 25 | 160 | 48 | M10x1.0mm |
| VS418M | 25 | ST25-SFH16-160 | 16 | 22 | 25 | 160 | 51 | M12x1.0mm |
| VS510M | 32 | ST32-SFH6-160 | 6 | 20 | 32 | 160 | 36 | M5x0.8mm |
| VS511M | 32 | ST32-SFH8-160 | 8 | 20 | 32 | 160 | 36 | M6x1.0mm |
| VS512M | 32 | ST32-SFH10-160 | 10 | 24 | 32 | 160 | 43 | M8x1.0mm |
| VS513M | 32 | ST32-SFH12-160 | 12 | 24 | 32 | 160 | 48 | M10x1.0mm |
| VS514M | 32 | ST32-SFH14-160 | 14 | 27 | 32 | 160 | 48 | M10x1.0mm |
| VS515M | 32 | ST32-SFH16-160 | 16 | 27 | 32 | 160 | 51 | M12x1.0mm |
| VS516M | 32 | ST32-SFH18-160 | 18 | 27 | 32 | 160 | 51 | M12x1.0mm |
| VS517M | 32 | ST32-SFH20-160 | 20 | 27 | 32 | 160 | 53 | M16x1.0mm |
