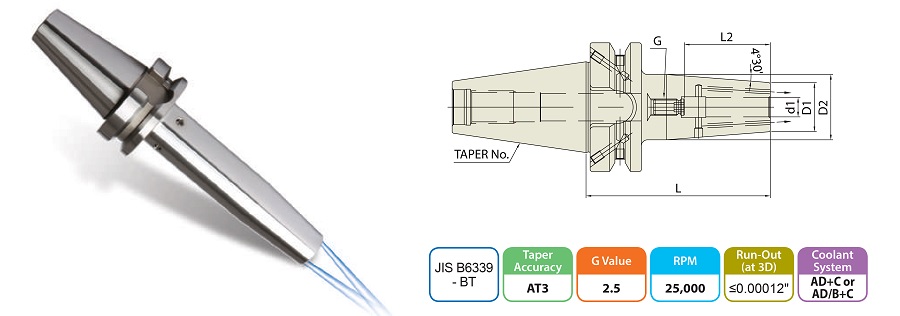

SHRINK FIT HOLDER Coolant Channel Type BT |
 |
| SHRINK FIT HOLDER Coolant Channel Type BT |
| EDP | TAPER No. | MODEL No. | d1 | D1 | D2 | L | L2 | G |
| VG024J | 30 | BT30 - SFH 1/4C - 2.36 | 0.250 | 0.827 | 1.063 | 2.360 | 1.417 | M5x0.8mm |
| VG026J | 30 | BT30 - SFH 3/8C - 2.36 | 0.375 | 0.945 | 1.180 | 2.360 | 1.654 | M8x1.0mm |
| VG028J | 30 | BT30 - SFH 1/2C - 3.15 | 0.500 | 0.945 | 1.260 | 3.150 | 1.850 | M10x1.0mm |
| VG030J | 30 | BT30 - SFH 5/8C - 3.15 | 0.625 | 1.063 | 1.339 | 3.150 | 1.969 | M12x1.0mm |
| VG032J | 30 | BT30 - SFH 3/4C - 3.54 | 0.750 | 1.299 | 1.654 | 3.540 | 2.008 | M16x1.0mm |
| VH024J | 40 | BT40 AD/B - SFH 1/4C - 3.54 | 0.250 | 0.827 | 1.063 | 3.540 | 1.417 | M5x0.8mm |
| VH026J | 40 | BT40 AD/B - SFH 1/4C - 6.30 | 0.250 | 0.827 | 1.063 | 6.300 | 1.417 | M5x0.8mm |
| VH028J | 40 | BT40 AD/B - SFH 3/8C - 3.54 | 0.375 | 0.945 | 1.260 | 3.540 | 1.654 | M8x1.0mm |
| VH030J | 40 | BT40 AD/B - SFH 3/8C - 6.30 | 0.375 | 0.945 | 1.260 | 6.300 | 1.654 | M8x1.0mm |
| VH032J | 40 | BT40 AD/B - SFH 1/2C - 3.54 | 0.500 | 0.945 | 1.260 | 3.540 | 1.850 | M10x1.0mm |
| VH034J | 40 | BT40 AD/B - SFH 1/2C - 6.30 | 0.500 | 0.945 | 1.260 | 6.300 | 1.850 | M10x1.0mm |
| VH036J | 40 | BT40 AD/B - SFH 5/8C - 3.54 | 0.625 | 1.063 | 1.339 | 3.540 | 1.969 | M12x1.0mm |
| VH038J | 40 | BT40 AD/B - SFH 5/8C - 6.30 | 0.625 | 1.063 | 1.339 | 6.300 | 1.969 | M12x1.0mm |
| VH040J | 40 | BT40 AD/ 4C - 3.54 | 0.750 | 1.299 | 1.654 | 3.540 | 2.047 | M16x1.0mm |
| VH042J | 40 | BT40 AD/B - SFH 3/4C - 6.30 | 0.750 | 1.299 | 1.654 | 6.300 | 2.047 | M16x1.0mm |
| VH044J | 40 | BT40 AD/B - SFH 1C - 3.94 | 1.000 | 1.732 | 2.087 | 3.940 | 2.283 | M16x1.0mm |
| VH046J | 40 | BT40 AD/B - SFH 1C - 6.30 | 1.000 | 1.732 | 2.087 | 6.300 | 2.283 | M16x1.0mm |
