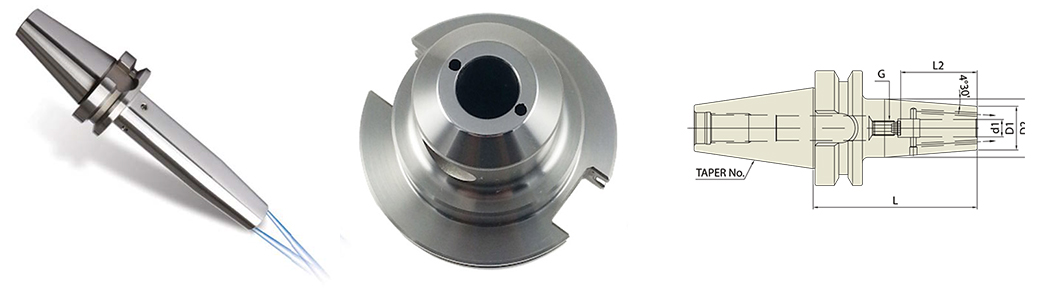

SHRINK FIT HOLDER (COOLANT CHANNEL TYPE) CAT

SHRINK FIT HOLDER (COOLANT CHANNEL TYPE) CAT

SHRINK FIT HOLDER (COOLANT CHANNEL TYPE) CAT
EDP TAPER No. MODEL No. d1 D1 D2 L L2 G
VK028J 40 CAT40 AD/B-SFH3/8C-3.15 0.375 0.945 1.260 3.150 1.654 M8x1.0mm
VK030J 40 CAT40 AD/B-SFH3/8C-6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm
VK032J 40 CAT40 AD/B-SFH1/2C-3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mm
VK034J 40 CAT40 AD/B-SFH1/2C-6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm
VK036J 40 CAT40 AD/B-SFH5/8C-3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm
VK038J 40 CAT40 AD/B-SFH5/8C-6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
VK040J 40 CAT40 AD/B-SFH3/4C-3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mm
VK042J 40 CAT40 AD/B-SFH3/4C-6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
VK044J 40 CAT40 AD/B-SFH1C-3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mm
VK046J 40 CAT40 AD/B-SFH1C-6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
VK048J 40 CAT40 AD/B-SFH1 1/4C-3.94 1.250 1.732 2.087 3.940 2.283 M16x1.0mm
VK050J 40 CAT40 AD/B-SFH1 1/4C-6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm
VL028J 50 CAT50 AD/B-SFH3/8C-3.15 0.375 0.945 1.260 3.150 1.575 M8x1.0mm
VL030J 50 CAT50 AD/B-SFH3/8C-6.30 0.375 0.945 1.260 6.300 1.575 M8x1.0mm
VL032J 50 CAT50 AD/B-SFH1/2C-3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mm
VL034J 50 CAT50 AD/B-SFH1/2C-6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm
VL036J 50 CAT50 AD/B-SFH5/8C-3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm
VL038J 50 CAT50 AD/B-SFH5/8C-6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
VL040J 50 CAT50 AD/B-SFH3/4C-3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mm
VL042J 50 CAT50 AD/B-SFH3/4C-6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
VL044J 50 CAT50 AD/B-SFH1C-3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mm
VL046J 50 CAT50 AD/B-SFH1C-6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
VL048J 50 CAT50 AD/B-SFH1 1/4C-3.94 1.250 1.732 2.087 3.940 2.283 M16x1.0mm
VL050J 50 CAT50 AD/B-SFH1 1/4C-6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm
