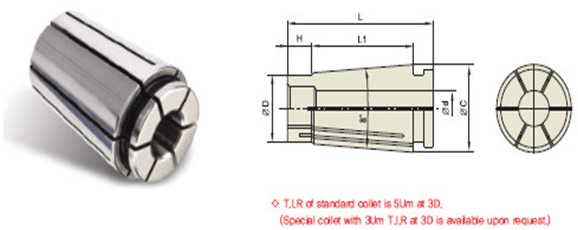

SK COLLET (INCH TYPE) |
 |
| SK COLLET (INCH TYPE) |
| EDP No. | TYPE | MODEL No. | CLAMPING RAMGE (d) |
| 3060108A | SKC6 | SKC6-1/8A | 0.125 |
| 3060316A | SKC6-3/16A | 0.187 | |
| 3100108A | SKC10 | SKC10-1/8A | 0.125 |
| 3100316A | SKC10-3/16A | 0.187 | |
| 3100104A | SKC10-1/4A | 0.25 | |
| 3100516A | SKC10-5/16A | 0.312 | |
| 3100308A | SKC10-3/8A | 0.375 | |
| 3160108A | SKC16 | SKC16-1/8A | 0.125 |
| 3160316A | SKC16-3/16A | 0.187 | |
| 3160104A | SKC16-1/4A | 0.25 | |
| 3160516A | SKC16-5/16A | 0.312 | |
| 3160308A | SKC16-3/8A | 0.375 | |
| 3160716A | SKC16-7/16A | 0.437 | |
| 3160102A | SKC16-1/2A | 0.5 | |
| 3160916A | SKC16-9/16A | 0.562 | |
| 3160508A | SKC16-5/8A | td class="formtxt" align="center">0.625||
| 3250316A | SKC25 | SKC25-3/16A | 0.187 |
| 3250104A | SKC25-1/4A | 0.25 | |
| 3250516A | SKC25-5/16A | 0.312 | |
| 3250308A | SKC25-3/8A | 0.375 | |
| 3250716A | SKC25-7/16A | 0.437 | |
| 3250102A | SKC25-1/2A | 0.5 | |
| 3250508A | SKC25-5/8A | 0.625 | |
| 3250304A | SKC25-3/4A | 0.75 |
