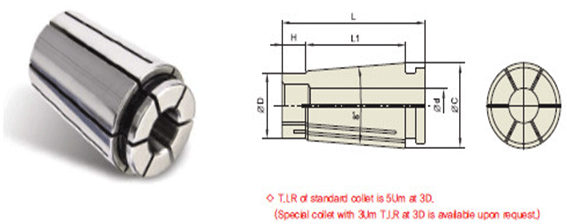

SK COLLET (METRIC TYPE) |
 |
| SK COLLET (METRIC TYPE) |
| TYPE | MODEL | CLAMPING RAMGE (d) | EDP No. |
| SKC6 | SKC6-1 | 0.9-1.0 | 306010 |
| SKC6-1.5 | 1.3-1.5 | 306015 | |
| SKC6-2 | 1.8-2.0 | 306020 | |
| SKC6-2.5 | 2.3-2.5 | 306025 | |
| SKC6-3 | 2.8-3.0 | 306030 | |
| SKC6-3.5 | 3.0-3.5 | 306035 | |
| SKC6-4 | 3.5-4.0 | 306040 | |
| SKC6-4.5 | 4.0-4.5 | 306045 | |
| SKC6-5 | 4.5-5.0 | 306050 | |
| SKC6-5.5 | 5.0-5.5 | 306055 | |
| SKC6-6 | 5.5-6.0 | 306060 | |
| SKC10 | SKC10-2 | 1.75-2.0 | 310020 |
| SKC10-2.5 | 2.25-2.5 | 310025 | |
| SKC10-3 | 2.75-3.0 | 310030 | |
| SKC10-3.5 | 3.0-3.5 | 310035 | |
| SKC10-4 | 3.5-4.0 | 310040 | |
| SKC10-4.5 | 4.0-4.5 | 310045 | |
| SKC10-5 | 4.5-5.0 | 310050 | |
| SKC10-5.5 | 5.0-5.5 | 310055 | |
| SKC10-6 | 5.5-6.0 | 310060 | |
| SKC10-6.5 | 6.0-6.5 | 310065 | |
| SKC10-7 | 6.5-7.0 | 310070 | |
| SKC10-7.5 | 7.0-7.5 | 310075 | |
| SKC10-8 | 7.5-8.0 | 310080 | |
| SKC10-8.5 | 8.0-8.5 | 310085 | |
| SKC10-9 | 8.5-9.0 | 310090 | |
| SKC10-9.5 | 9.0-9.5 | 310095 | |
| SKC10-10 | 9.5-10.0 | 310100 | |
| SKC13 | SKC13-3 | 2.75-3.0 | 313030 |
| SKC13-3.5 | 3.0-3.5 | 313035 | |
| SKC13-4 | 3.5-4.0 | 313040 | |
| SKC13-4.5 | 4.0-4.5 | 313045 | |
| SKC13-5 | 4.5-5.0 | 313050 | |
| SKC13-5.5 | 5.0-5.5 | 313055 | |
| SKC13-6 | 5.5-6.0 | 313060 | |
| SKC13-6.5 | 6.0-6.5 | 313065 | |
| SKC13-7 | 6.5-7.0 | 313070 | |
| SKC13-7.5 | 7.0-7.5 | 313075 | |
| SKC13-8 | 7.5-8.0 | 313080 | |
| SKC13-8.5 | 8.0-8.5 | 313085 | |
| SKC13-9 | 8.5-9.0 | 313090 | |
| SKC13-9.5 | 9.0-9.5 | 313095 | |
| SKC13-10 | 9.5-10.0 | 313100 | |
| SKC13-10.5 | 10.0-10.5 | 313105 | |
| SKC13-11 | 10.5-11.0 | 313110 | |
| SKC13-11.5 | 11.0-11.5 | 313115 | |
| SKC13-12 | 11.5-12.0 | 313120 | |
| SKC13-12.5 | 12.0-12.5 | 313125 | |
| SKC13-13 | 12.5-13.0 | 313130 | |
| SKC16 | SKC16-3 | 2.75-3.0 | 316030 |
| SKC16-3.5 | 3.0-3.5 | 316035 | |
| SKC16-4 | 3.5-4.0 | 316040 | |
| SKC16-4.5 | 4.0-4.5 | 316045 | |
| SKC16-5 | 4.5-5.0 | 316050 | |
| SKC16-5.5 | 5.0-5.5 | 316055 | |
| SKC16-6 | 5.5-6.0 | 316060 | |
| SKC16-6.5 | 6.0-6.5 | 316605 | |
| SKC16-7 | 6.5-7.0 | 316070 | |
| SKC16-7.5 | 7.0-7.5 | 316075 | |
| SKC16-8 | 7.5-8.0 | 316080 | |
| SKC16-8.5 | 8.0-8.5 | 316085 | |
| SKC16-9 | 8.5-9.0 | 316090 | |
| SKC16-9.5 | 9.0-9.5 | 316095 | |
| SKC16-10 | 9.5-10.0 | 316100 | |
| SKC16-10.5 | 10.0-10.5 | 316105 | |
| SKC16-11 | 10.5-11.0 | 316110 | |
| SKC16-11.5 | 11.0-11.5 | 316115 | |
| SKC16-12 | 11.5-12.0 | 316120 | |
| SKC16-12.5 | 12.0-12.5 | 316125 | |
| SKC16-13 | 12.5-13.0 | 316130 | |
| SKC16-13.5 | 13.0-13.5 | 316135 | |
| SKC16-14 | 13.5-14.0 | 316140 | |
| SKC16-14.5 | 14.0-14.5 | 316145 | |
| SKC16-15 | 14.5-15.0 | 316150 | |
| SKC16-15.5 | 15.0-15.5 | 316155 | |
| SKC16-16 | 15.5-16.0 | 316160 | |
| SKC20 | SKC20-4 | 3.5-4.0 | 323040 |
| SKC20-4.5 | 4.0-4.5 | 323045 | |
| SKC20-5 | 4.5-5.0 | 323050 | |
| SKC20-5.5 | 5.0-5.5 | 323055 | |
| SKC20-6 | 5.5-6.0 | 323060 | |
| SKC20-6.5 | 6.0-6.5 | 323065 | |
| SKC20-7 | 6.5-7.0 | 323070 | |
| SKC20-7.5 | 7.0-7.5 | 323075 | |
| SKC20-8 | 7.5-8.0 | 323080 | |
| SKC20-8.5 | 8.0-8.5 | 323085 | |
| SKC20-9 | 8.5-9.0 | 323090 | |
| SKC20-9.5 | 9.0-9.5 | 323095 | |
| SKC20-10 | 9.5-10.0 | 323100 | |
| SKC20-10.5 | 10.0-10.5 | 323105 | |
| SKC20-11 | 10.5-11.0 | 323110 | |
| SKC20-11.5 | 11.0-11.5 | 323115 | |
| SKC20-12 | 11.5-12.0 | 323120 | |
| SKC20-12.5 | 12.0-12.5 | 323125 | |
| SKC20-13 | 12.5-13.0 | 323130 | |
| SKC20-13.5 | 13.0-13.5 | 323135 | |
| SKC20-14 | 13.5-14.0 | 323140 | |
| SKC20-14.5 | 14.0-14.5 | 323145 | |
| SKC20-15 | 14.5-15.0 | 323150 | |
| SKC20-15.5 | 15.0-15.5 | 323155 | |
| SKC20-16 | 15.5-16.0 | 323160 | |
| SKC20-16.5 | 16.0-16.5 | 323165 | |
| SKC20-17 | 16.5-17.0 | 323170 | |
| SKC20-17.5 | 17.0-17.5 | 323175 | |
| SKC20-18 | 17.5-18.0 | 323180 | |
| SKC20-18.5 | 18.0-18.5 | 323185 | |
| SKC20-19 | 18.5-19.0 | 323190 | |
| SKC20-19.5 | 19.0-19.5 | 323195 | |
| SKC20-20.0 | 19.5-20.0 | 323200 | |
| SKC25 | SKC25-16.5 | 16.0-16.5 | 325165 |
| SKC25-17 | 16.5-17.0 | 325170 | |
| SKC25-17.5 | 17.0-17.5 | 325175 | |
| SKC25-18 | 17.5-18.0 | 325180 | |
| SKC25-18.5 | 18.0-18.5 | 325185 | |
| SKC25-19 | 18.5-19.0 | 325190 | |
| SKC25-19.5 | 19.0-19.5 | 325195 | |
| SKC25-20 | 19.5-20.0 | 325200 | |
| SKC25-20.5 | 20.0-20.5 | 325205 | |
| SKC25-21 | 20.5-21.0 | 325210 | |
| SKC25-21.5 | 21.0-21.5 | 325215 | |
| SKC25-22 | 21.5-22.0 | 325220 | |
| SKC25-22.5 | 22.0-22.5 | 325225 | |
| SKC25-23 | 22.5-23.0 | 325230 | |
| SKC25-23.5 | 23.0-23.5 | 325235 | |
| SKC25-24 | 23.5-24.0 | 325240 | |
| SKC25-24.5 | 24.0-24.5 | 325245 | |
| SKC25-25 | 24.5-25.0 | 325250 | |
| SKC25-25.4 | 25.0-25.4 | 325254 |
