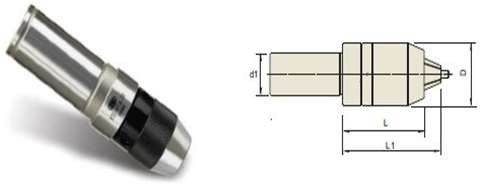

STRAIGHT NC DRILL CHUCK (K) |
 |
| STRAIGHT NC DRILL CHUCK (K) |
| TYPE | MODEL No. | CAPACITY | D | L(MIN) | L1(MAX) | d1 | EDP No. |
| 32 | K32-NPU 8-70 | 0.3~8 | 36.5 | 70 | 75.7 | 32mm | RS100 |
| K32-NPU 13-100 | 1~13 | 50.4 | 100 | 110 | 32mm | RS102 | |
| 42 | K42-NPU 8-70 | 0.3~8 | 36.5 | 70 | 75.7 | 42mm | RS104 |
| K42-NPU 13-100 | 1~13 | 50.4 | 100 | 110 | 42mm | RS106 |
