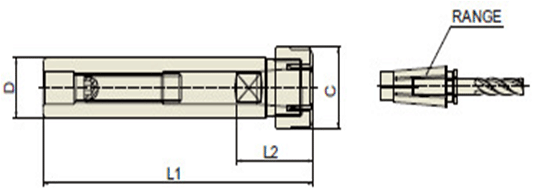

STRAIGHT SK SLIM CHUCK K |
 |
| STRAIGHT SK SLIM CHUCK K |
| TAPER NO. | TYPE | D1 | D2 | L1 | L2 | EDP NO. |
| K3/4 | K3/4 - SKA6-100 | 0.750 | 0.787 | 3.937 | 0.827-1.378 | TS020 |
| K3/4 - SKA6-140 | 0.750 | 0.787 | 5.512 | 0.827-1.378 | TS021 | |
| K3/4 - SKA10-100 | 0.750 | 1.102 | 3.937 | 1.181-1.969 | TS022 | |
| K3/4 - SKA10-140 | 0.750 | 1.102 | 5.512 | 1.181-1.969 | TS023 | |
| K1 | K1 - SKA6-100 | 1.000 | 0.787 | 3.937 | 0.827-1.378 | TS030 |
| K1 - SKA6-140 | 1.000 | 0.787 | 5.512 | 0.827-1.378 | TS031 | |
| K1 - SKA10-100 | 1.000 | 1.102 | 3.937 | 1.181-1.969 | TS032 | |
| K1 - SKA10-150 | 1.000 | 1.102 | 5.906 | 1.181-1.969 | TS033 | |
| K1 - SKA13-100 | 1.000 | 1.299 | 3.937 | 1.220-2.559 | TS034 | |
| K1 - SKA13-150 | 1.000 | 1.299 | 5.906 | 1.220-2.559 | TS035 | |
| K1 1/4 | K1 1/4 - SKA10-100 | 1.250 | 1.102 | 3.937 | 1.181-1.969 | TS040 |
| K1 1/4 - SKA10-150 | 1.250 | 1.102 | 5.906 | 1.181-1.969 | TS041 | |
| K1 1/4 - SKA13-100 | 1.250 | 1.299 | 3.937 | 1.220-2.559 | TS042 | |
| K1 1/4 - SKA13-150 | 1.250 | 1.299 | 5.906 | 1.220-2.559 | TS043 | |
| K1 1/4 - SKA16-100 | 1.250 | 1.575 | 3.937 | 1.575-2.756 | TS044 | |
| K1 1/4 - SKA16-150 | 1.250 | 1.575 | 5.906 | 1.575-2.756 | TS045 | |
| K1 1/4 - SKA20-100 | 1.250 | 1.909 | 3.937 | 1.850-3.150 | TS046 | |
| K1 1/4" - SKA20-150 | 1.250 | 1.909 | 5.906 | 1.850-3.150 | TS047 |
