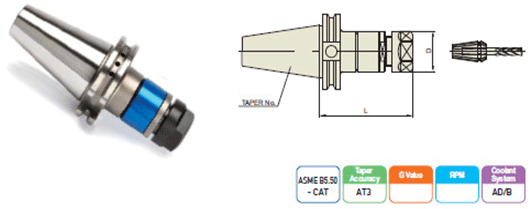

SYNCHRO TAPPING ER CHUCK (CAT) |
 |
| SYNCHRO TAPPING ER CHUCK (CAT) |
| TAPER No. | MODEL No. | TAP SIZE | CLAMPING G RANGE | NUT | D | L | EDP No. |
| 40 | CAT40AD/B-SYTER12-79 | M3-M12 | 3.5-10 | ER16 | 28 | 79 | JK060SYT |
| CAT40AD/B-SYTER16-85 | M3-M16 | 3.5-10 | ER20 | 34 | 85 | JK062SYT | |
| CAT40AD/B-SYTER20-90 | M3-M20 | 3.5-16 | ER25 | 42 | 90 | JK064SYT | |
| CAT40AD/B-SYTER27-100 | M4-M27 | 3.5-16 | ER32 | 50 | 100 | JK066SYT | |
| CAT40AD/B-SYTER33-105 | M4-M33 | 7-16 | ER40 | 63 | 105 | JK068SYT | |
| 50 | CAT50AD/B-SYTER12-79 | M3-M12 | 3.5-10 | ER16 | 28 | 79 | JL060SYT |
| CAT50AD/B-SYTER16-85 | M3-M16 | 3.5-10 | ER20 | 34 | 85 | JL062SYT | |
| CAT50AD/B-SYTER20-90 | M3-M20 | 3.5-16 | ER25 | 42 | 90 | JL064SYT | |
| CAT50AD/B-SYTER27-100 | M4-M27 | 3.5-16 | ER32 | 50 | 100 | JL066SYT | |
| CAT50AD/B-SYTER33-105 | M4-M33 | 7-16 | ER40 | 63 | 105 | JL068SYT |
