TAP ER COLLET (INCH TYPE) |
 |
| TAP ER COLLET (INCH TYPE) |

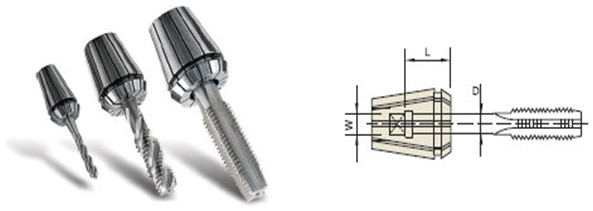

| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 11TC | |||||
| 11TC1411 | #6 1/8 | M3 | 0.141 | 0.110 | 0.472 |
| 11TC1613 | #8 5/32 | M4 | 0.168 | 0.131 | 0.472 |
| 11TC1915 | #10 3/16 | M4.5+M5 | 0.194 | 0.152 | 0.472 |
| 11TC2216 | #12 7/32 | - | 0.220 | 0.165 | 0.551 |
| 11TC2519 | #14 1/4 | M6+M6.5 | 0.255 | 0.191 | 0.551 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 16TC | |||||
| 16TC1411 | #6 1/8 | M3 | 0.141 | 0.110 | 0.709 |
| 16TC1613 | #8 5/32 | M4 | 0.168 | 0.131 | 0.709 |
| 16TC1915 | #10 3/16 | M4.5+M5 | 0.194 | 0.152 | 0.709 |
| 16TC2216 | #12 7/32 | - | 0.220 | 0.165 | 0.709 |
| 16TC2519 | #14 1/4 | M6+M6.5 | 0.255 | 0.191 | 0.709 |
| 16TC3123 | 5/16 | M7+M8 | 0.318 | 0.238 | 0.709 |
| 16TC3224 | 7/16 | - | 0.323 | 0.242 | 0.709 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 20TC | |||||
| 20TC1411 | #6 1/8 | M3 | 0.141 | 0.110 | 0.709 |
| 20TC1613 | #8 5/32 | M4 | 0.168 | 0.131 | 0.709 |
| 20TC1915 | #10 3/16 | M4.5+M5 | 0.194 | 0.152 | 0.709 |
| 20TC2216 | #12 7/32 | - | 0.220 | 0.165 | 0.709 |
| 20TC2519 | #14 1/4 | M6+M6.5 | 0.255 | 0.191 | 0.709 |
| 20TC3123 | 5/16 | M7+M8 | 0.318 | 0.238 | 0.866 |
| 20TC3224 | 7/16 | - | 0.323 | 0.242 | 0.866 |
| 20TC3622 | 1/2 | M12+M12.5 | 0.367 | 0.275 | 0.866 |
| 20TC3828 | 3/8 | M10 | 0.381 | 0.286 | 0.866 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 25TC | |||||
| 25TC1411 | #6 1/8 | M3 | 0.141 | 0.110 | 0.709 |
| 25TC1613 | #8 5/32 | M4 | 0.168 | 0.131 | 0.709 |
| 25TC1915 | #10 3/16 | M4.5+M5 | 0.194 | 0.152 | 0.709 |
| 25TC2216 | #12 7/32 | - | 0.220 | 0.165 | 0.709 |
| 25TC2519 | #14 1/4 | M6+M6.5 | 0.255 | 0.191 | 0.709 |
| 25TC3123 | 5/16 | M7+M8 | 0.318 | 0.238 | 0.866 |
| 25TC3224 | 7/16 | - | 0.323 | 0.242 | 0.866 |
| 25TC3622 | 1/2 | M12+M12.5 | 0.367 | 0.275 | 0.866 |
| 25TC3828 | 3/8 | M10 | 0.381 | 0.286 | 0.866 |
| 25TC4232 | 9/16 | M14 | 0.429 | 0.322 | 0.984 |
| 25TC4836 | 5/8 | M16 | 0.480 | 0.360 | 0.984 |
| 25TC5440 | 11/16 | M18 | 0.542 | 0.406 | 0.984 |
| 25TC5944 | 3/4 | - | 0.590 | 0.442 | 0.984 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 32TC | |||||
| 32TC1411 | #6 1/8 | M3 | 0.141 | 0.110 | 0.709 |
| 32TC1613 | #8 5/32 | M4 | 0.168 | 0.131 | 0.709 |
| 32TC1915 | #10 3/16 | M4.5+M5 | 0.194 | 0.152 | 0.709 |
| 32TC2216 | #12 7/32 | - | 0.220 | 0.165 | 0.709 |
| 32TC2519 | #14 1/4 | M6+M6.5 | 0.255 | 0.191 | 0.709 |
| 32TC3123 | 5/16 | M7+M8 | 0.318 | 0.238 | 0.866 |
| 32TC3224 | 7/16 | - | 0.323 | 0.242 | 0.866 |
| 32TC3627 | 1/2 | M12+M12.5 | 0.367 | 0.275 | 0.866 |
| 32TC3828 | 3/8 | M10 | 0.381 | 0.286 | 0.866 |
| 32TC4232 | 9/16 | M14 | 0.429 | 0.322 | 0.984 |
| 32TC4836 | 5/8 | M16 | 0.480 | 0.360 | 0.984 |
| 32TC5440 | 11/16 | M18 | 0.542 | 0.406 | 0.984 |
| 32TC5944 | 3/4 | - | 0.590 | 0.442 | 0.984 |
| 32TC6548 | 13/16 | M20 | 0.652 | 0.489 | 0.984 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 40TC | |||||
| 40TC1411 | #6 1/8 | M3 | 0.141 | 0.110 | 0.709 |
| 40TC1613 | #8 5/32 | M4 | 0.168 | 0.131 | 0.709 |
| 40TC1915 | #10 3/16 | M4.5+M5 | 0.194 | 0.152 | 0.709 |
| 40TC2216 | #12 7/32 | - | 0.220 | 0.165 | 0.709 |
| 40TC2519 | #14 1/4 | M6+M6.5 | 0.255 | 0.191 | 0.709 |
| 40TC3123 | 5/16 | M7+M8 | 0.318 | 0.238 | 0.866 |
| 40TC3224 | 7/16 | - | 0.323 | 0.242 | 0.866 |
| 40TC3627 | 1/2 | M12+M12.5 | 0.367 | 0.275 | 0.866 |
| 40TC3828 | 3/8 | M10 | 0.381 | 0.286 | 0.866 |
| 40TC4232 | 9/16 | M14 | 0.429 | 0.322 | 0.984 |
| 40TC4836 | 5/8 | M16 | 0.480 | 0.360 | 0.984 |
| 40TC5440 | 11/16 | M18 | 0.542 | 0.406 | 0.984 |
| 40TC5944 | 3/4 | - | 0.590 | 0.442 | 0.984 |
| 40TC6548 | 13/16 | M20 | 0.652 | 0.489 | 0.984 |
| 40TC6952 | 7/8 | M22 | 0.697 | 0.523 | 0.984 |
| 40TC7657 | 15/16 | M24 | 0.760 | 0.570 | 0.984 |
| 40TC8060 | 1 | M25 | 0.800 | 0.600 | 1.102 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 16TCP | |||||
| 16TP3123 | 1/8(SS) | - | 0.312 | 0.234 | 0.709 |
| 16TP4332 | 1/8(LS) | - | 0.437 | 0.328 | 0.709 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 20TCP | |||||
| 20TP3123 | 1/8(SS) | - | 0.312 | 0.234 | 0.787 |
| 20TP4332 | 1/8(LS) | - | 0.437 | 0.328 | 0.787 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 25TCP | |||||
| 25TP3123 | 1/8(SS) | - | 0.312 | 0.234 | 0.787 |
| 25TP4332 | 1/8(LS) | - | 0.437 | 0.328 | 0.787 |
| 25TP5642 | 1/4 | - | 0.562 | 0.420 | 0.787 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 32TCP | |||||
| >32TP3123 | 1/8(SS) | - | 0.312 | 0.234 | 0.787 |
| 32TP4332 | 1/8(LS) | - | 0.437 | 0.328 | 0.787 |
| 32TP5642 | 1/4 | - | 0.562 | 0.420 | 0.787 |
| EDP No. | INCH | Metric | D(Φ) | W(□) | L |
| RD 40TCP | |||||
| 40TP3123 | 1/8(SS) | - | 0.312 | 0.234 | 0.787 |
| 40TP4332 | 1/8(LS) | - | 0.437 | 0.328 | 0.787 |
| 40TP5642 | 1/4 | - | 0.562 | 0.420 | 0.787 |
| 40TP7053 | 3/8 | 0.700 | 0.530 | 0.866 | |
| 40TP6851 | 1/2 | 0.687 | 0.515 | 0.866 | |
| 40TP9067 | 3/4 | 0.906 | 0.679 | 0.945 |
