TAP ER COLLET (METRIC TYPE) |
 |
| TAP ER COLLET (METRIC TYPE) |

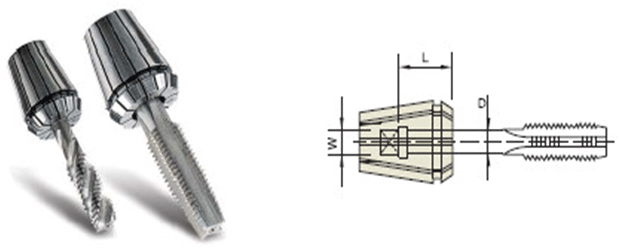

| EDP No | TAP | D(Φ) | W(□) | L |
| RDT 16 | ||||
| 16T30025 | M2 | 3.0 | 2.5 | 15 |
| 16T40032 | M3 | 4.0 | 3.2 | 15 |
| 16T50040 | M4 | 5.0 | 4.0 | 15 |
| 16T55045 | M5 | 5.5 | 4.5 | 15 |
| 16T60045 | M6 | 6.0 | 4.5 | 15 |
| 16T62050 | M8 | 6.2 | 5.0 | 15 |
| RDT 20 | ||||
| 20T40032 | M3 | 4.0 | 3.2 | 15 |
| 20T50040 | M4 | 5.0 | 4.0 | 15 |
| 20T55045 | M5 | 5.5 | 4.5 | 15 |
| 20T60045 | M6 | 6.0 | 4.5 | 15 |
| 20T62050 | M8 | 6.2 | 5.0 | 20 |
| 20T70055 | M10 | 7.0 | 5.5 | 20 |
| RDT 25 | ||||
| 25T40032 | M3 | 4.0 | 3.2 | 15 |
| 25T50032 | M4 | 5.0 | 4.0 | 15 |
| 25T55045 | M5 | 5.5 | 4.5 | 15 |
| 25T60045 | M6 | 6.0 | 4.5 | 15 |
| 25T62050 | M8 | 6.2 | 5.0 | 20 |
| 25T70055 | M10 | 7.0 | 5.5 | 20 |
| 25T85065 | M12 | 8.5 | 6.5 | 20 |
| 25T10580 | M14 | 10.5 | 8.0 | 20 |
| RDT 32 | ||||
| 32T50040 | M4 | 5.0 | 4.0 | 15 |
| 32T55045 | M5 | 5.5 | 4.5 | 15 |
| 32T60045 | M6 | 6.0 | 4.5 | 15 |
| 32T62050 | M8 | 6.2 | 5.0 | 20 |
| 32T70055 | M10 | 7.0 | 5.5 | 20 |
| 32T85065 | M12 | 8.5 | 6.5 | 20 |
| 32T10560 | M14 | 10.5 | 8.0 | 20 |
| 32T12510 | M16 | 12.5 | 10.0 | 20 |
| 32T14011 | M18 | 14.0 | 11.0 | 20 |
| RDT 40 | ||||
| 40T62050 | M8 | 6.2 | 5.0 | 20 |
| 40T70055 | M10 | 7.0 | 5.5 | 20 |
| 40T85065 | M12 | 8.5 | 6.5 | 25 |
| 40T10580 | M14 | 10.5 | 8.0 | 25 |
| 40T12510 | M16 | 12.5 | 10.0 | 25 |
| 40T14011 | M18 | 14.0 | 11.0 | 25 |
| 40T15012 | M20 | 15.0 | 12.0 | 25 |
| 40T17013 | M22 | 17.0 | 13.0 | 25 |
| 40T19015 | M24 | 19.0 | 15.0 | 25 |
