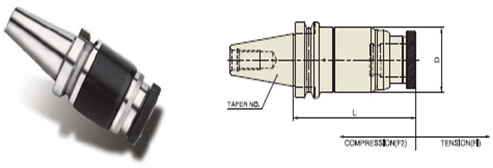

TAPPING CHUCK (BT) |
 |
| TAPPING CHUCK (BT) |
| EDP No. | TAPER No. | MODEL No. | D | L | F1 | F2 |
| JH048 | 40 | BT40 - TC #1 - 4.53 | 1.77 | 4.53 | 0.591 | 0.197 |
| JI048 | 50 | BT50 - TC #1 - 4.64 | 1.77 | 4.64 | 0.591 | 0.197 |
| JH049 | 40 | BT40 - TC #2 - 6.72 | 2.48 | 6.72 | 0.787 | 0.197 |
| JI049 | 50 | BT50 - TC #2 - 6.72 | 2.48 | 6.72 | 0.787 | 0.197 |
| JI050 | 50 | BT50 - TC #3 - 8.33 | 3.86 | 8.33 | 0.984 | 0.394 |
