TAPPING CHUCKS |
|
 |
 |

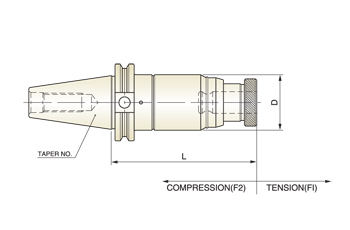

| TAPPING CHUCK (TAP SYSTEM #1 COLLETS) |
| EDP No. | Type | Taper No. | D | L | F1 | F2 |
| JK048 | CAT 40-TC#1-4.56 | 40 | 1.77 | 4.56 | 0.197 | 0.591 |
| JL048 | CAT 50-TC#1-4.56 | 50 | 1.77 | 4.56 | 0.197 | 0.591 |
| TAPPING CHUCK (TAP SYSTEM #2 COLLETS) |
| EDP No. | Type | Taper No. | D | L | F1 | F2 |
| JK049 | CAT 40-TC#2-6.47 | 40 | 2.48 | 6.47 | 0.197 | 0.787 |
| JL049 | CAT 50-TC#2-5.82 | 50 | 2.48 | 5.82 | 0.197 | 0.787 |
| TAPPING CHUCK (TAP SYSTEM #3 COLLETS) |
| EDP No. | Type | Taper No. | D | L | F1 | F2 |
| JL050 | CAT 50-TC#3-7.75 | 50 | 3.86 | 7.75 | 0.394 | 0.984 |
