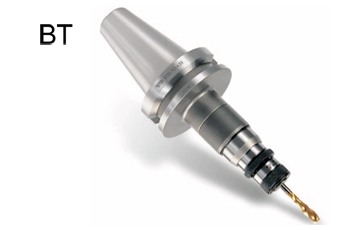

TAPPING CHUCKS |
|
 |
 |
| TAPPING CHUCK (TAP SYSTEM #1 COLLETS) |

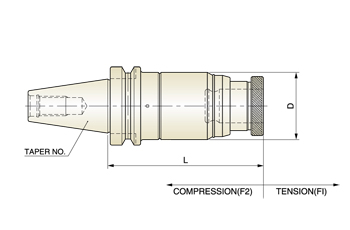

| EDP No. | Type | Taper No. | D | L | F1 | F2 |
| JH048 | BT 40-TC#1-4.53 | 40 | 1.77 | 4.53 | 0.197 | 0.591 |
| JI048 | BT 50-TC#1-4.64 | 50 | 1.77 | 4.64 | 0.197 | 0.591 |
| TAPPING CHUCK (TAP SYSTEM #2 COLLETS) |
| EDP No. | Type | Taper No. | D | L | F1 | F2 |
| JH049 | BT 40-TC#2-6.72 | 40 | 2.48 | 6.72 | 0.197 | 0.787 |
| JI049 | BT 50-TC#2-6.72 | 50 | 2.48 | 6.72 | 0.197 | 0.787 |
| TAPPING CHUCK (TAP SYSTEM #3 COLLETS) |
| EDP No. | Type | Taper No. | D | L | F1 | F2 |
| JI050 | BT 50-TC#3-8.33 | 50 | 3.86 | 8.33 | 0.394 | 0.984 |
