TENSION ER COLLET CHUCK (For TAPPING) K |
 |
| TENSION ER COLLET CHUCK (For TAPPING) K |

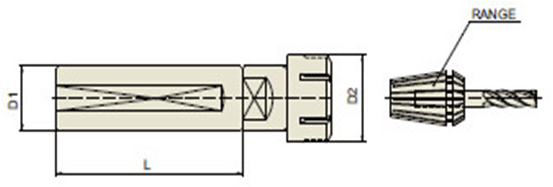

| TAPER NO. | MODEL No. | D1 | D2 | L | EDP NO. |
| K | K1-ERT16-2.76 | 1.000 | 1.102 | 2.756 | BS110 |
| K1-ERT20-3.15 | 1.000 | 1.339 | 3.150 | BS111 | |
| K1 1/4-ERT16-2.76 | 1.250 | 1.102 | 2.756 | BS112 | |
| K1 1/4-ERT20-3.15 | 1.250 | 1.339 | 3.150 | BS113 | |
| K1 1/4-ERT25-3.15 | 1.250 | 1.654 | 3.150 | BS114 | |
| K1 1/4-ERT32-3.15 | 1.250 | 1.969 | 3.150 | BS115 |
