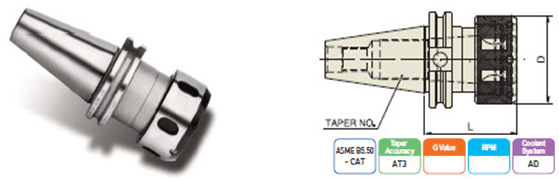

TG COLLET CHUCK (CAT) |
 |
| TG COLLET CHUCK (CAT) |
| EDP No. | TAPER No. | MODEL No. | CLAMPING RANGE | L | D | COLLET SERIES |
| VK012 | 40 | CAT40-TG75-2.50 | 0.047-0.750 | 2.50 | 1.87 | 75TG |
| VK312 | 40 | CAT40-TG75-3.00 | 0.047-0.750 | 3.00 | 1.87 | 75TG |
| OK014 | 40 | CAT40-TG100-3.25 | 0.063-1.000 | 3.25 | 2.50 | 100TG |
| OL014 | 50 | CAT50-TG100-3.25 | 0.063-1.000 | 3.25 | 2.50 | 100TG |
| OK314 | 40 | CAT40-TG100-4.50 | 0.063-1.000 | 4.50 | 2.50 | 100TG |
| OL314 | 50 | CAT40-TG100-5.50 | 0.063-1.000 | 5.50 | 2.50 | 100TG |
| UL052 | 50 | CAT50-TG150-3.50 | 0.500-1.500 | 3.50 | 3.50 | 150TG |
| UL352 | 50 | CAT50-TG150-6.00 | 0.500-1.500 | 6.00 | 3.50 | 150TG |
